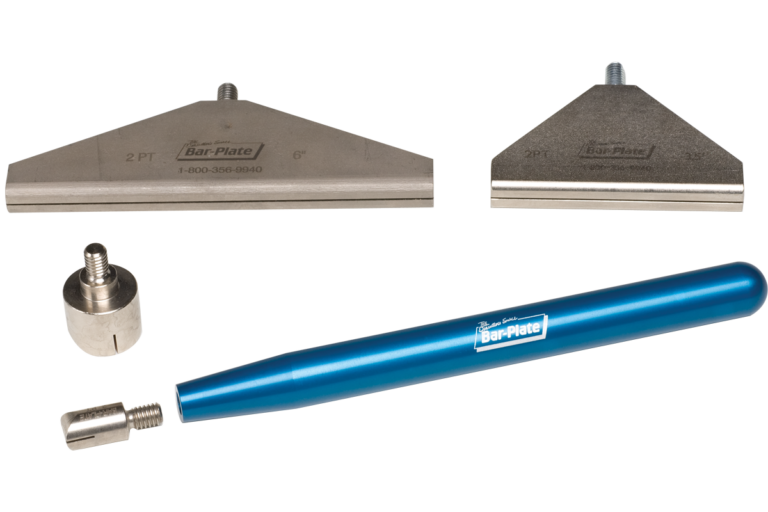

Rule Tweaker

A revolutionary tool that works both on and off press. When the knife needs to be moved just a smidgen more to the left, or when the miter needs just a touch to make it perfect, or the crease needs just a tap to straighten it, we have the tool for you. When making a rule profile adjustment, it is critical that you don’t damage or mark the knife. Bar-Plate has developed the Rule Tweaker to correct knife distortion in the die, to ensure accurate joint alignment and even to modify the diecut profile.

We call this TWEAKING. The Rule Tweaker can also be used to change the folding characteristics of a container or box by bending the creasing rule to improve carton assembly. The Rule Tweaker’s interchangeable handle can be used with any of the four available heads. A handle in both 2pt, 3pt and 4pt configurations is included, as well as ½” and 1″ heads. 3 1/2″ and 6″ heads are sold separately. With a choice of head widths and point configurations, the Rule Tweaker allows you to “tweak” the necessary area without rule distortion.The height of the tweaking slot is designed to protect the edge of the rule from damage.


Additional information

Product & Size:

2PT SET COMPLETE ( 1/2" , 1" + HANDLE), 2PT – 1/2" HEAD, 2PT – 1" HEAD, 2PT – 3 1/2" HEAD, 2PT – 6" HEAD, 3PT SET COMPLETE ( 1/2" , 1" + HANDLE), 3PT – 1/2" HEAD, 3PT – 1" HEAD, 3PT – 3 1/2" HEAD, 3PT – 6" HEAD, 4PT SET COMPLETE ( 1/2" , 1" + HANDLE), 4PT – 1/2" HEAD, 4PT – 1" HEAD, 4PT – 3 1/2" HEAD, 4PT – 6" HEAD, HANDLE
